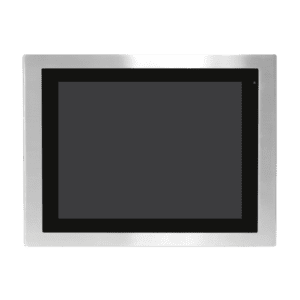

The Panel PCs of the SMART-HMI-VA-17X0 Series use 6th generation Intel dual-core processors specifically designed for embedded systems.

I3-core (2.3 GHz) or i5-core (2.4 GHz – 3.0 GHz) processors from Intel are available. In combination with the 4GB RAM (expandable to max. 16GB RAM) which has already been installed as standard, the Panel-PC has a strong performance combined with improved energy efficiency. It is thus ideally suited for use in the field of control and visualization.

The equipment, which can be scaled within the device series, offers a selectable balance of performance, energy consumption and price. The PAnel PCs of the Smart-HMI-VA-17X0 Series  are characterized by economy in power consumption and heat dissipation.

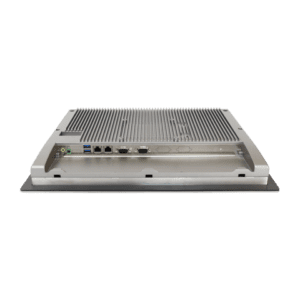

Like all Panel PCs in the SMART HMI series, the devices of the 17X0 performance class also convince in the robust aluminum housing. The high-quality industrial components of the touch computer are optimally cooled and reliably protected. The low construction depth offers a high degree of flexibility in relation to the installation situation.

The mass storage (SSD or HDD) is accessible from the panel PCs of this product series via a service flap on the back and can be quickly replaced in case of an error without having to dismantle the device.

Depending on the application, resistive or capacitive touchscreens are available. Both touch variants are flush-mounted, installed without dirt edge to the display, extremely precise and absolutely suitable for industrial use.
